BLAUBERG TURBO 315-G 315MM INLINE MIXED FLOW S/C + THERMOSTAT

Description

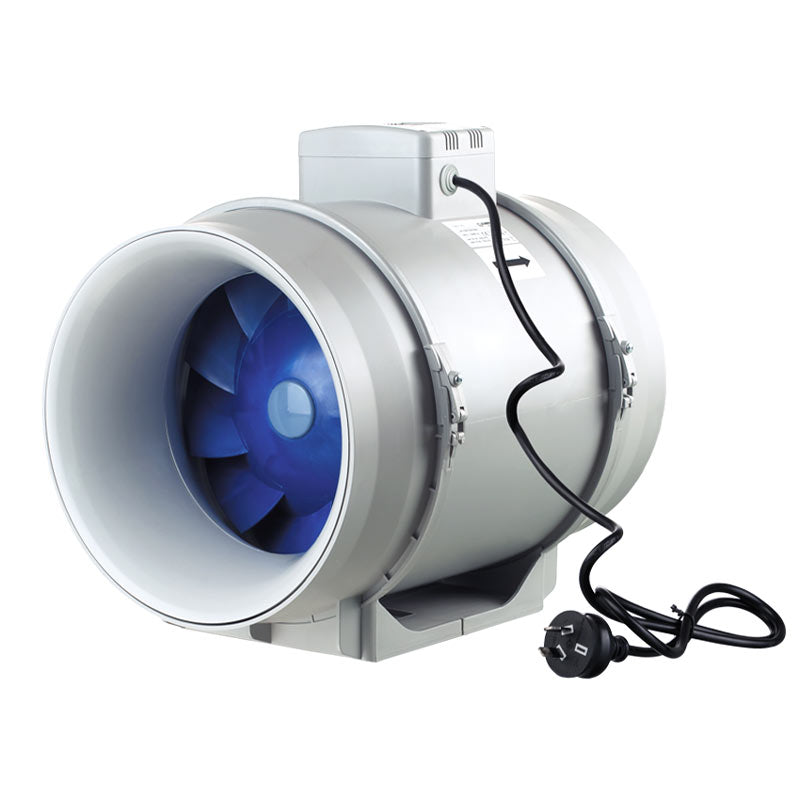

Blauberg Turbo 315 G Inline Mixed-Flow Fan

The Blauberg Turbo 315 G inline mixed-flow fan delivers powerful ventilation up to 2,050 m³/h while maintaining ultra-quiet operation. Designed for round ducts and engineered for automatic temperature-responsive control, it’s ideal for greenhouses, commercial kitchens, bathrooms and any space requiring consistent airflow and climate regulation.

Key Features:

• High-performance mixed-flow impeller ensures efficient airflow up to 2,050 m¬≥/h
• Integrated two-speed motor on sealed ball bearings with manual thermal overload protection
• Built-in smooth speed controller and external temperature sensor (4 m cable) for automatic speed adjustment
• Polypropylene casing with thermoplastic elastomer for low-flammability and chemical resistance
• IPX4-rated protection on both casing and drive for safe operation in humid environments
• Compact design allows installation in any orientation and limited spaces, including behind false ceilings
• Quick-release motor block permits easy servicing without duct disassembly

Technical Specifications:

• Connected duct diameter: 315 mm
• Voltage: 230 V
• Frequency: 50 – 60 Hz
• Power consumption: 230 – 320 W
• Current: 1.0 – 1.42 A
• Airflow: 1,570 – 2,050 m¬≥/h
• Sound pressure level at 3 m: 41 – 52 dB
• Operating temperature: up to 60 ¬∞C
• Ingress protection: IPX4
• Weight: 11.95 kg
• Cable with mains plug: 4 m temperature sensor lead

Automatic Temperature Control

The Turbo 315 G’s thermostat-driven speed controller lets you preset a target temperature. Below that threshold, the fan runs at a lower speed to prevent overcooling; when temperatures rise, it automatically ramps up to maximum airflow. This dynamic response keeps grow rooms, workshops and living spaces precisely balanced without manual intervention.

Installation & Compatibility

The fan’s universal mounting design fits any section of a 315 mm round duct system. Its compact polypropylene housing and flexible orientation allow wall, ceiling or inline mounting, even in tight plenums behind false ceilings. IPX4 protection makes it safe for bathrooms, kitchens and humid industrial settings.
