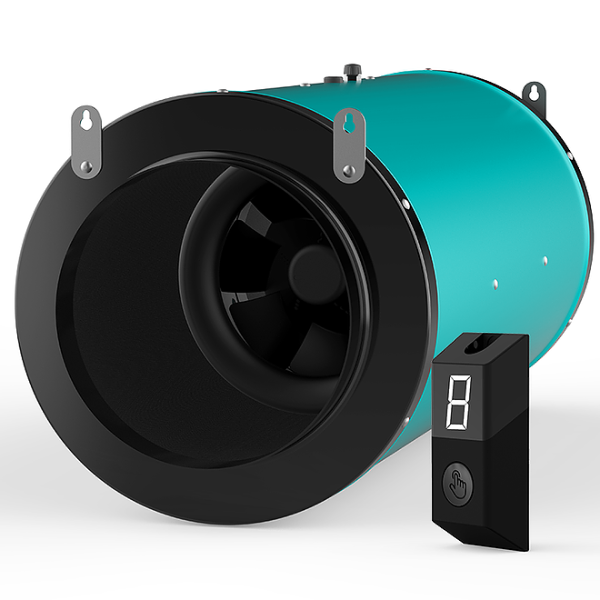

SIGILVENTUS EC SILENCED FAN 250MM

$570.00

Out of stock

Description

The SIGILVENTUS SILENCED FAN is simply designed to make the wrapped EC motor fan work quietly with no-humming, no vibration and no airflow loss. Due to the use of the selected high density acoustic foam, it has been proved to be one of the quietest inline fans in the horticulture industry.

ENGINEERED SILENCED BODY
Using durable piano wire springs to attach EC fan motor to the steel silencing housing, it simply makes the whole fan vibration-free. The acoustic foam used inside is Eco and fire-proof for safety operation and meeting the standard of the application in HVACR industry.

INTELLIGENT AND UNIVERSALLY COMPATIBLE
It supports universal ventilation systems by offering 0-10vdc control signals, as well as PWM and Potentiometer and offers adaptors for other 3pins EC fan controllers and RJ45 controllers.

BEST HYDROPONIC VENTILATION SOLUTION EVER
SigilVentus Silenced Fans are all built with EC motor fan, which has the up-to-date EC technology. Unlike traditional AC motor or badly built EC/DC motor, it is totally free of buzzing at low speeds. And due to years of specialized EC tech research and development, SigilVentus offers the most cost-effective EC solution and proved to be the most affordable EC silenced fan on the market and best in its class.

Model SE-A250-J01
Dimension 859mm (L) x 353mm(H)
Duct Size 10“|250mm
Rated Voltage 110V~120V | 220V~240V
Max. Power C. 150W
Frequency 50Hz|60Hz
Max. Speed 3200RPM
Max. Airflow 1065CFM | 1808M3H
Static Pressure 52mmH2O | 510Pa
Signal Outputs PWM, 0-10V, POT, FG
MAX. Noise 55dBA[1M-INLET]
Housing Material Steel
Acoustic Foam Fire-Proof
Motor Type EC Motor
Net Weight 13.7kgs
IP Rating IPX4
Installation 4 Hanging Brackets
Certifications ETL, CE, SAA, ERP, HVI

INSTALLATION ADVICE
A detachable fast clamp is one of our recommended selected accessory for hard/PVC duct installation, which can be detached from the fan for easy cleaning, maintenance, and repair.

For more information go to https://www.sigilventus.com/silent-inline-duct-fan

Additional information

Weight 16.36 kg
Dimensions 94 × 33 × 43.5 cm
